Modular / Rack Mounted

we also offer a wide range of Rack Mounted Fibre Termination Products

These panels conform to most standard rack configurations including 19″, 23″, ETS1, TEP1E and can be front, mid and rear mounted.

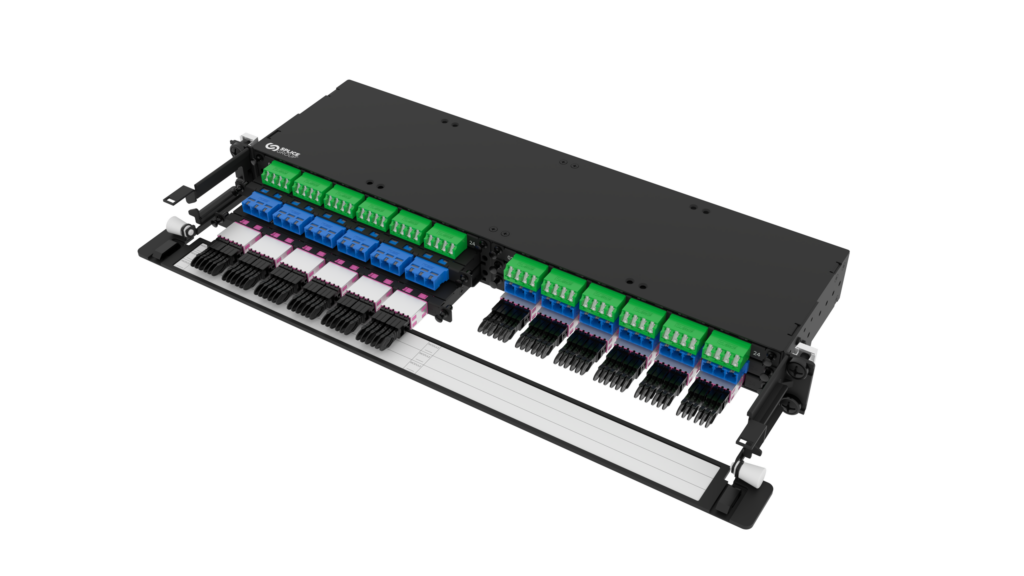

high density Panel - 144 fibres

The SpliceGroup 6 way customer termination panel provides a modular and scalable platform to connect and successfully manage your fibre optic network. The space saving 1U 19″ front-facing panel can accept 6 x SpliceGroupTM Slimline Customer Termination Modules catering for up to 144 fibres using small form factor connections. The fibre can be increased to 432 fibres using very small form factor connections.

The SpliceGroupTM modules are loaded into the front of the panel making it possible to mix different types of modules within the same panel. The high-density panel has a split design separating modules within the chassis allowing users to add and remove modules without disrupting pre-installed fibres. Comes complete with front management kit to ensure proper cable management and a label for port mapping.

  • Slimline design
  • Port mapping label
  • Secure
  • Compatible with industry standards equipment racks and frames. 19″, 21″, 23″ or ETSI mountable options
  • Designated fibre management at the front
  • Rear cable management
  • 6 x Modules per 1U panel (144 fibres | 432 fibres)
  • Scalable – the chassis capacity can be adapted to actual needs, through combinations of connectivity cassettes and blanking plates
  • Passive optical devices can be mounted within the unit. CWDM, DWDM, fuse tapered splitters, modal conditioners and planner devices
  • All connector types and styles accommodated (OS2, OM1, OM2, OM3, OM4 & OM5.

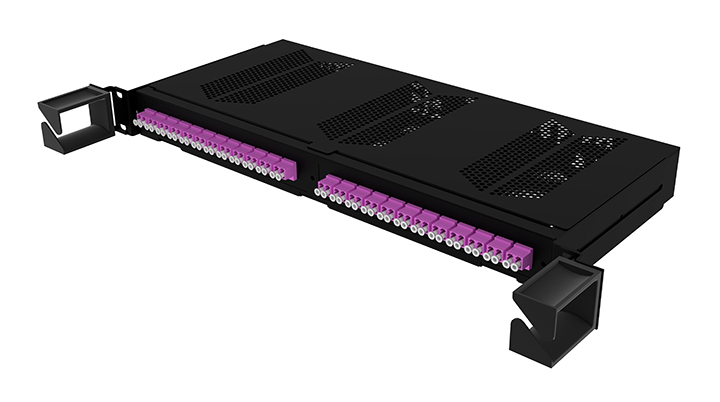

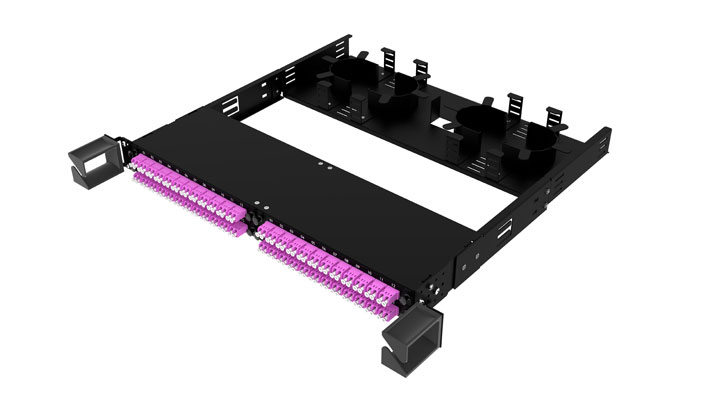

High Density Panel - 96 fibres

The SpliceGroup high density panel offers the ability to mount our standard cassettes within a 19” rack mounted system. By front facing the cassettes it allows unto 96 fibres within a 1U Space.

Each cassette is modular by design and therefore additional fibres and cables can be added without disrupting the existing connections.

  • Modular in design
  • Standard Splice cassettes format
  • Various connection types available
  • Compatible with industry standard equipment racks and frames. 19″, 21″, 23″ or ETSI mountable options
  • Integral horizontal patchcord guides.
  • Rear patchcord storage management
  • 4 x Modules per 1U panel (48 ports LC – 96 Fibres)
  • F-tube compatible.

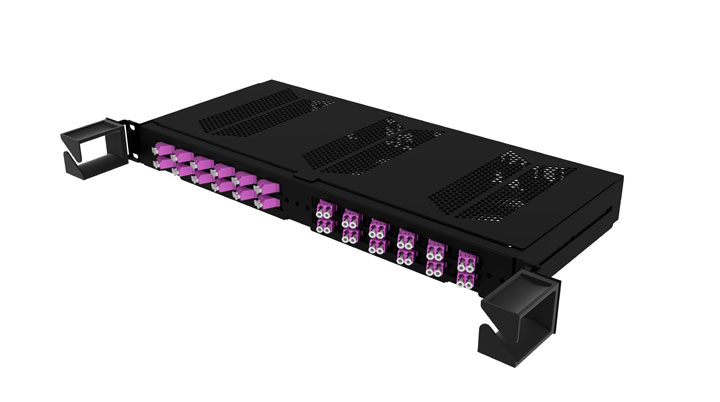

1U Angled Patch Panel

The SpliceGroup angled vented 1U panel allows a maximum of 48fibres within a standard 1U footprint.

This modular panel is typically used when distributing connections to provide a point of presence to remote locations. The angled front designs offers improved fibre management.

  • Modular in design
  • Compatible with industry standard equipment racks and frames. 19”, 21”, 23” or ETSI mountable options
  • Integrated Port Identification
  • Integral horizontal patchcord guides.
  • Vented Panel to improve airflow
  • Angled front panel to aid fibre management
  • Accommodates pre-terminated cables
  • F-tube compatible.
